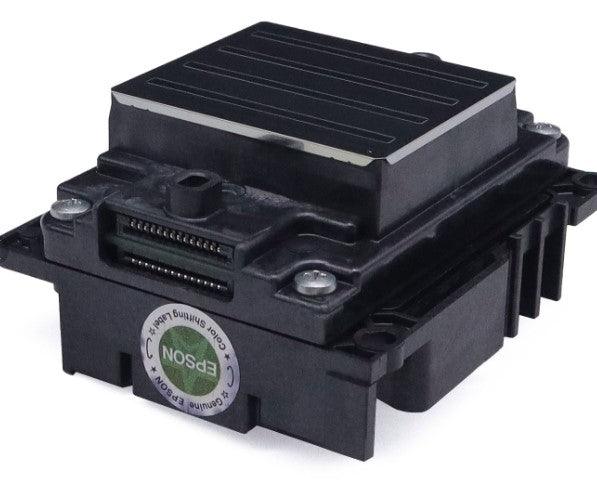

Epson I3200-U1 UV Printhead - I3200-U1
by INKJET PARTS
$ 1,459.00
The Epson I3200-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.
Specifications :
- Ink Type : UV
- Type : PrecisionCore MicroTFP printhead
- Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
- Weight : 82g
- Number of nozzle : 3200
- Nozzle pitch/nozzle row : 1/300 inch
- Nozzle rows: 8 rows
- Nozzle Resolution : 300 noi/row 600 npi/2 rows
- Max. number of colour inks : 4 colours
- Effective print width : 33.8 mm (1.33 inches)
-
Droplet ejection performance :
Binary : 5 plat 43.2 kHz
3 levels grey scale : 6, 12.5 pl at 21.6 kHz
4 levels grey scale 3.8, 6.2, 9.3 pl at 21.6 kHz - Viscosity range : 5-7 mPa·s
- This printhead carries a manufacturer warranty.
- Country of origin : Japan
