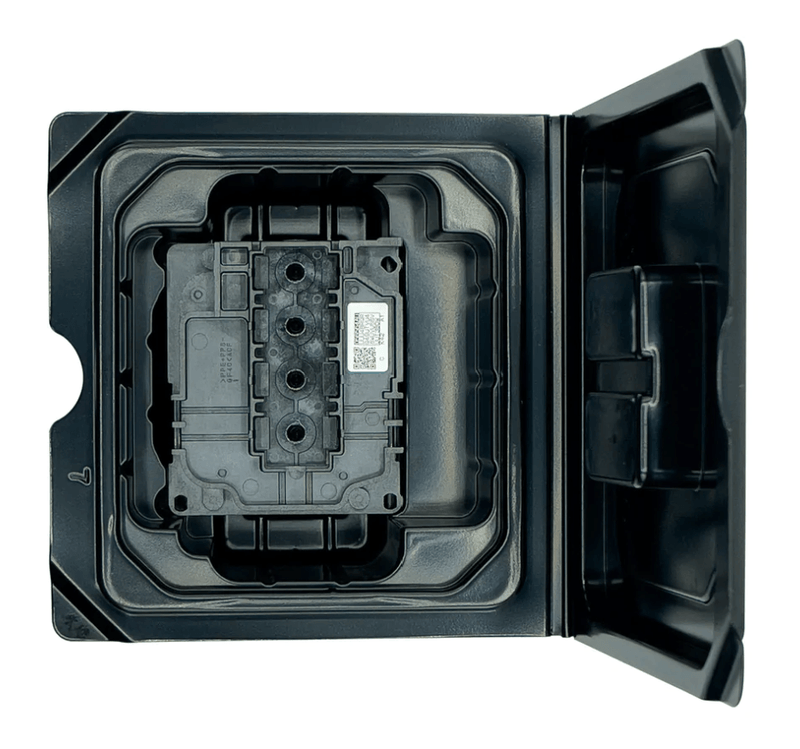

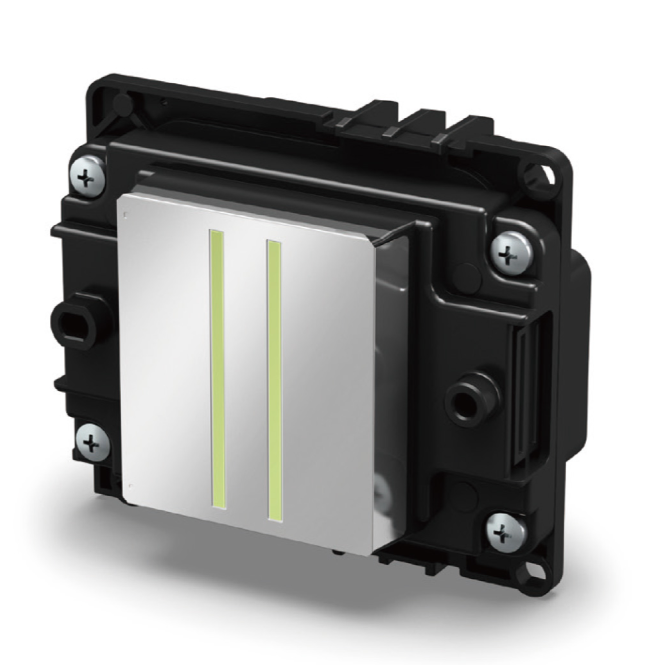

Epson i1600-U1 UV Printhead - i1600-U1
by INKJET PARTS
$ 1,159.00
Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.
SKU: I1600-U1
Specifications
Product name: I1600-U1
Ink type: UV
Type: PrecisionCoreMicroTFP Printhead
Width × Depth × Height: 2.7×2.3× 1.4 inch (69.1x 59.4 x 35.6mm)
Weight: 80g
Number of nozzle: 1600
Nozzle pitch / nozzle row: 1/300 inch
Nozzle rows: 4 rows
Nozzle Resolution: 300 npi/row 600npi/2 rows
Max. number of color inks: 4 colors
Effective print width: 1.33 inches (33.8 mm)
Viscosity range: 5-7mPa•s
Positioning Mechanism: Reference hole
Product name: I1600-U1
Ink type: UV
Type: PrecisionCoreMicroTFP Printhead
Width × Depth × Height: 2.7×2.3× 1.4 inch (69.1x 59.4 x 35.6mm)
Weight: 80g
Number of nozzle: 1600
Nozzle pitch / nozzle row: 1/300 inch
Nozzle rows: 4 rows
Nozzle Resolution: 300 npi/row 600npi/2 rows
Max. number of color inks: 4 colors
Effective print width: 1.33 inches (33.8 mm)
Viscosity range: 5-7mPa•s
Positioning Mechanism: Reference hole
Manufacturer part number: I1600-U1
Ships 5-7 days
