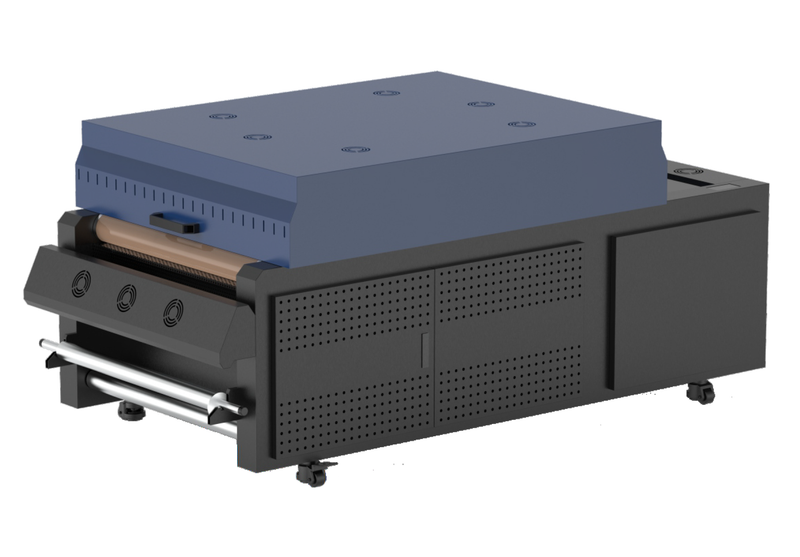

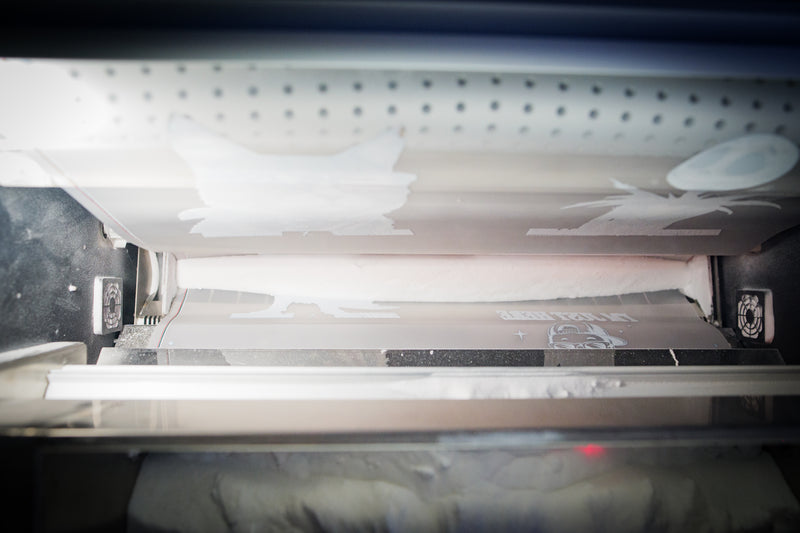

Fedar SH604 24" DTF Shaker with Built in Purification
24-inch Fedar SH604 DTF shaker with built-in purification, paired with the FD70-2 and FD70-4.
Ships by LTL freight, or pick up free in Ontario, California. Call 844-571-8171.
24-inch Fedar SH604 DTF shaker with built-in purification, paired with the FD70-2 and FD70-4.
Ships by LTL freight, or pick up free in Ontario, California. Call 844-571-8171.
The SH604 is the shaker only. A Fedar DTF printer is sold separately. Optional on-site installation and training are quoted separately.
| Media width | 24 in (0-600 mm on the Impact USA SH604 brochure) |
|---|---|
| Purification | Built in |
| Machine size and weight | 35 x 81 x 40 in, 772 lb (Impact USA FD70 system sheet). The SH604 brochure lists net weight 350 kg (772 lb) and packing 2450 x 1030 x 1200 mm. |
| Power | SH604 brochure: 220V, 11A, rated 2.4 kW (starting 15A / 3.3 kW). Later Impact USA FD70 system sheet: 220V, 20A dedicated circuit. Confirm service before install. |
| Assembly | Ships fully assembled; designed to roll through a 36-inch doorway |
It is the 24-inch DTF shaker and dryer with built-in purification that Impact USA pairs with FD70-2 and FD70-4 DTF printers.
Yes. It ships fully assembled and is designed to roll through a 36-inch doorway.
Impact USA does not publish a throughput figure on the SH604 page or brochure, so we do not list one here.
By LTL freight from our warehouse in Ontario, California, or free local pickup at 1590 S Milliken Ave, Suite E, Ontario, California 91761. Call 844-571-8171 for a freight quote.
The shaker arrives ready to position. Optional on-site installation and training are available — call 844-571-8171.
A 1-year limited warranty, excluding technician travel expenses.
Figures are from Impact USA product pages and linked specification sheets, checked 13 November 2026. Inkjet Parts prices are not compared here, and no Impact prices are shown.
| SH604 24-inch | SH606 24-inch | SH808 32-inch | |
|---|---|---|---|
| Media width | 24 in | 24 in | 32 in |
| Rated throughput | Not published on the Impact USA SH604 page or brochure | About 377 sq ft/hr (Impact USA SH606 page) | About 592 sq ft/hr, matched to the FD1808 production mode |
| Best paired DTF printer | FD70-2 / FD70-4 | FD70-6 | FD1808 |
| Purification | Built in | Built in | Built in |
| Power (Impact USA) | SH604 brochure: 220V, 11A (2.4 kW). Later FD70 system sheet: 220V, 20A dedicated circuit | SH606 page: 220V ~15A. FD70 system sheet: 220V, 20A dedicated circuit | 220V, 30A dedicated circuit |
| Machine size and weight | 35 x 81 x 40 in, 772 lb (Impact USA system sheet; brochure net weight 350 kg / 772 lb) | 35 x 87 x 40 in, 838 lb | 108 x 49 x 44 in, 750 lb |
| Arrives assembled | Yes, 36-inch doorway | Yes, 36-inch doorway | Yes |
| Sources: Impact USA SH604, SH606, and SH808 pages and linked sheets, checked 13 November 2026. Electrical figures that differ between an older brochure and a later system sheet are listed in the table so you can confirm service with us before install. | |||
Media width 24 in
Rated throughput Not published on the Impact USA SH604 page or brochure
Best paired DTF printer FD70-2 / FD70-4
Purification Built in
Power (Impact USA) SH604 brochure: 220V, 11A (2.4 kW). Later FD70 system sheet: 220V, 20A dedicated circuit
Machine size and weight 35 x 81 x 40 in, 772 lb (Impact USA system sheet; brochure net weight 350 kg / 772 lb)
Arrives assembled Yes, 36-inch doorway
Media width 24 in
Rated throughput About 377 sq ft/hr (Impact USA SH606 page)
Best paired DTF printer FD70-6
Purification Built in
Power (Impact USA) SH606 page: 220V ~15A. FD70 system sheet: 220V, 20A dedicated circuit
Machine size and weight 35 x 87 x 40 in, 838 lb
Arrives assembled Yes, 36-inch doorway
Media width 32 in
Rated throughput About 592 sq ft/hr, matched to the FD1808 production mode
Best paired DTF printer FD1808
Purification Built in
Power (Impact USA) 220V, 30A dedicated circuit
Machine size and weight 108 x 49 x 44 in, 750 lb
Arrives assembled Yes
Sources: Impact USA SH604, SH606, and SH808 pages and linked sheets, checked 13 November 2026. Electrical figures that differ between an older brochure and a later system sheet are listed in the table so you can confirm service with us before install.
