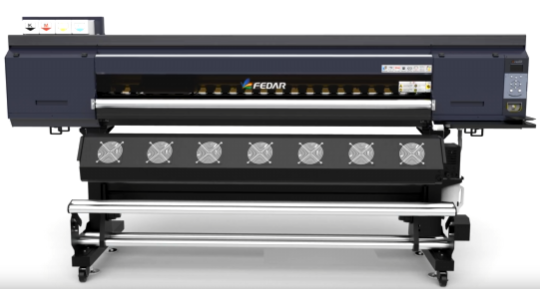

Fedar FD5193E Sublimation Printer (3 Head – Epson i3200)

The Fedar FD5193E sublimation printer is a high-speed industrial solution designed for maximum productivity and consistent print quality. Featuring three Epson i3200-A1 printheads, this printer delivers ultra-fast output, smooth gradients, and reliable performance for large-scale textile and transfer printing.

Built for demanding production environments, the FD5193E includes a bulk ink system, precision tension media handling, and advanced motor control, ensuring stable operation and minimal downtime.

Key Features

• Triple Epson i3200 printheads
• Up to 162㎡/h production speed
• 1900mm wide-format printing
• Bulk ink supply system (4L capacity)
• Automatic head cleaning and moisture system
• Precision tension feeding system
• Compatible with Maintop, FlexiPRINT, ONYX, and Neostampa

Specifications

Print System

• Printheads: Epson i3200-A1 (3 heads)
• Resolution: Up to 3200 DPI
• Colors: CMYK / CMYK+2
• Print Width: 1900mm

Speed

• 2 Pass: 162㎡/h
• 3 Pass: 109㎡/h
• 4 Pass: 82㎡/h
• 6 Pass: 45㎡/h

Ink System

• Ink Type: Sublimation Ink
• Supply: Bulk Tank Sub-Tank System (4L)

Media & Handling

• Media Type: Transfer Paper
• Max Feed: 300m
• Max Take-Up: 200m
• Media System: Auto tension take-up device

Dimensions

• Machine: 3180 × 1030 × 1670 mm
• Weight: 470 kg
