Bulk Ink Systems for Mimaki, Mutoh and Roland: A Setup Guide
By the Impact USA technical team
If your Mimaki, Mutoh or Roland wide-format printer runs every day, you've probably stopped a long print to swap a cartridge at least once. A bulk ink system replaces constant cartridge swaps with larger tanks that keep refillable cartridges topped up through tubing. This guide explains how a bulk system works, how it compares with OEM cartridges, how to tell if your printer is compatible, which chips and ink you'll need and how to install and maintain it.
How a bulk ink system works
A bulk system has three main parts:
- Tanks that hold a large supply of each color outside the printer.

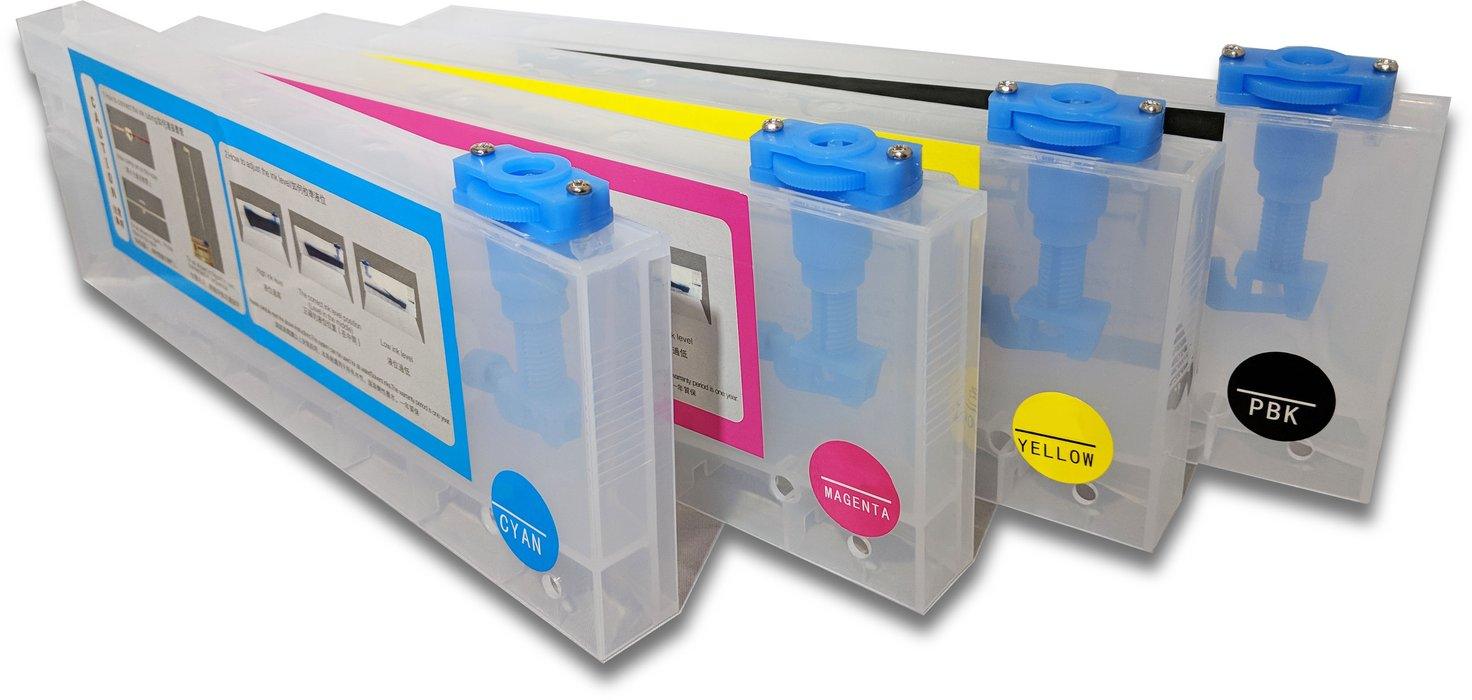

- Refillable cartridges that sit in the printer's cartridge slots, just like OEM cartridges.
- Tubing that connects each tank to its cartridge so ink is replaced as the printer uses it.
Our Inkjet Parts Bulk Ink System for Mimaki, Mutoh & Roland includes 4 tanks that each hold 1.5 liters, 8 cartridges that each hold about 0.5 liters and the tubing to connect everything. The printer still needs to recognize each cartridge, which is where permanent chips or an emulator board come in (more on that below).
Bulk ink vs OEM cartridges
Both options have a place. Here's how they compare in day-to-day use.
| OEM cartridges | Bulk ink system | |
|---|---|---|
| Refilling | Swap a cartridge when it runs low | Top up the tanks; cartridges stay in the printer |
| Long and overnight runs | A cartridge can run out mid-job | A larger ink reserve per color |
| Chips | Single-use chip on each cartridge | Permanent chips or an emulator board |
| Setup | None | Install, fill and prime once |
| Upkeep | Minimal | Watch tank levels, tubing and air in the lines |
| Ink choice | The manufacturer's ink | OEM bulk ink or a matched drop-in ink |
Bulk systems make the most sense for shops that print in high volume, run long jobs unattended or go through the same colors quickly. If you print occasionally, cartridges may still be the simpler choice.
Is your printer compatible?
Check three things before you order.
1. Cartridge style
Our bulk system is listed for Mimaki, Mutoh and Roland printers that use horizontal cartridges. If you're not sure how your cartridges load, send us a photo of the cartridge bay.
2. How the printer will read the cartridges
Your printer checks a chip in every slot. With a bulk system, you replace single-use chips with a permanent solution:
- Mimaki CJV150, JV150, CJV300 and JV300: SS21 permanent chips or ES3 permanent chips, matched to the ink set you run.
- Mimaki CJV30 and JV33: SS21 permanent chips or ES3 permanent chips.
- Mimaki JV33, JV34, JV5, JV150 and JV300: the Ink Chip Emulator Board replaces all of the original ink chips and works in sublimation or solvent mode.
- Roland VP-300, VP-540, VS-640, VS-540, VS-420, VS-300, SP-540i, SP-300i, XJ-740, XJ-640, RE-640 and BN-20: Eco Maxx permanent chips or Eco Maxx 2 permanent chips.
Our bulk system listing also notes that chips that fit Mimaki OEM cartridges fit its cartridges. For Mutoh printers, call us with your model so we can confirm the right setup.
3. Your ink
The bulk system itself is listed for solvent, sublimation and DTF inks. The ink still has to match your printhead, your printer's ink type and your color profiles. That's the next step.
Choose the ink before the hardware
A bulk system is only as good as the ink in it. Pick your ink first, then build the system around it.
- Mimaki eco-solvent: the Mimaki Bulk Solvent Ink Starter Kit is listed for Mimaki printers using the SS21 or ES3 chip set. It includes four 1.5-liter tanks, eight float cartridges, a CMYK set of 1-liter Impact USA eco-solvent ink and tubing. The listing describes the ink as a drop-in color match for SS21 and ES3, so no profile change is needed. Chips are sold separately.
- Eco-Sol MAX and Eco-Ultra users: Impact Eco-Solvent Ink is made to match the performance and color of Eco-Sol MAX and Eco-Ultra.
- Mutoh eco-solvent: genuine Mutoh MS31 ink in 1,000 ml packs for the ValueJet 1324X, 1624X, 1638X and 2638X.
- Sublimation: Radiant Sublimation Ink, a drop-in replacement for Kiian Digistar Hi-Pro, Radiant X Sublimation Ink or genuine Mutoh DH21 sublimation ink in 1,000 ml bags.
Changing ink brands or types at the same time as you install bulk? Read our eco-solvent ink buying guide or our sublimation ink buying guide for wide-format printers first. Both cover how to switch inks safely.
What to have ready before you install
- The bulk system, filled with the ink you've chosen
- Permanent chips or an emulator board for your model
- Cleaning liquid that matches your ink: Eco Solvent Cleaning Solution or Sublimation Cleaning Solution
- A 60cc inkjet syringe for priming and pulling ink
- Cleaning swabs, nitrile gloves, lint-free cloths and labels for each color
- A saved nozzle check and notes on your current settings
How to install a bulk ink system, step by step
Always follow the instructions for your system and printer. In general, an install looks like this:
- Print and save a nozzle check. You want a clean baseline before you change anything.
- Flush first if you're changing ink. Don't mix ink types or brands in the lines.
- Place the tanks. Set them on a stable surface where they won't be bumped. Follow the system's instructions for tank position relative to the printer.
- Route the tubing. Keep it clear of the carriage path and avoid kinks and sharp bends. Label each line by color.
- Fill the tanks one color at a time. Double-check every color before you pour.
- Install the chips or emulator board. Fit each chip to the matching color channel. Don't force a chip onto the wrong color.
- Prime the cartridges and lines. Fill each cartridge and clear the air from the tubing, using the syringe if needed.
- Load the cartridges into the correct slots and confirm the printer reads every channel.
- Run a cleaning, then a nozzle check and a test print. Compare to your baseline.
- Check for leaks at every fitting over the first day of printing.
Keep your bulk system healthy
- Don't let tanks run dry. An empty tank lets air into the line. Air in the ink delivery system is a common cause of fading and missing prints. Our post on ink starvation explains why.
- Keep tanks covered so dust and debris stay out of the ink.
- Watch the tubing. Look for air gaps, kinks or tubing that has hardened or cracked. Replacement soft tubing and Mimaki PE hard ink tube for the JV33, JV5 and JV300 are in stock.
- Keep up with normal printer maintenance. A bulk system doesn't change how often the cap tops, wipers and dampers need attention. See 7 signs your Mimaki JV150 capping station needs replacing and our Roland SP-300i and SP-300V printhead guide.
- Clean regularly. Our guide to cleaning your wide-format printer covers the basics.
What about the printer warranty?
Many shop owners worry that a bulk system will void their printer warranty. In the US, the Magnuson-Moss Warranty Act generally keeps manufacturers from voiding a warranty just because you used third-party supplies. Damage caused by those supplies may still not be covered, though. Read your printer's warranty terms before converting. Some shops wait until the manufacturer warranty ends before switching.
Frequently asked questions
Store-written FAQs from the Inkjet Parts team, not customer submissions.
- Will a bulk ink system work on my printer?
- Our bulk ink system is listed for Mimaki, Mutoh and Roland printers that use horizontal cartridges. Your printer also needs a way to read the refillable cartridges, such as permanent chips or a chip emulator board. Call us with your exact model and chip set to confirm.
- Do I still need ink chips with a bulk system?
- Yes. The printer still checks for a chip in each slot. Mimaki printers use SS21 or ES3 permanent chips that match the ink set, Roland models use Eco Maxx or Eco Maxx 2 permanent chips, and the Mimaki emulator board replaces the original chips on JV33, JV34, JV5, JV150 and JV300 printers.
- Can I use a bulk system with sublimation ink?
- Yes. Our bulk ink system is listed for solvent, sublimation and DTF inks. Match the ink to your printhead and printer first, and flush properly if you're changing ink types.
- Do I need a new color profile after switching to bulk ink?
- Not if you keep running the same ink. If you change brands or series, plan on a new profile. Our Mimaki Bulk Solvent Ink Starter Kit is listed as a drop-in color match for Mimaki SS21 and ES3, so no profile change is needed.
- Does a bulk ink system need more maintenance?
- A little. You'll keep tanks topped up, watch the tubing for air and wear, and keep the tanks covered. The printer's usual maintenance, like cap tops, wipers and dampers, stays the same.
Shop bulk ink systems and supplies
- Inkjet Parts Bulk Ink System for Mimaki, Mutoh & Roland, 4 Tanks & 8 Cartridges
- Mimaki Bulk Solvent Ink Starter Kit + CMYK 1 Liter
- Mimaki JV33 / JV5 / JV300 Ink Chip Emulator Board
- Roland Eco Maxx 2 Permanent Chips CMYK
- All eco-solvent ink and sublimation ink and paper
- Parts for Mimaki, Mutoh and Roland printers
Not sure which chips or ink fit your printer? Call our technical team at 844-571-8171 or email sales@inkjetparts.com with your printer model and a photo of your cartridge bay. Paid installation and training are also available. Orders placed before 3:45 PM PT ship the same day from Ontario, California.
